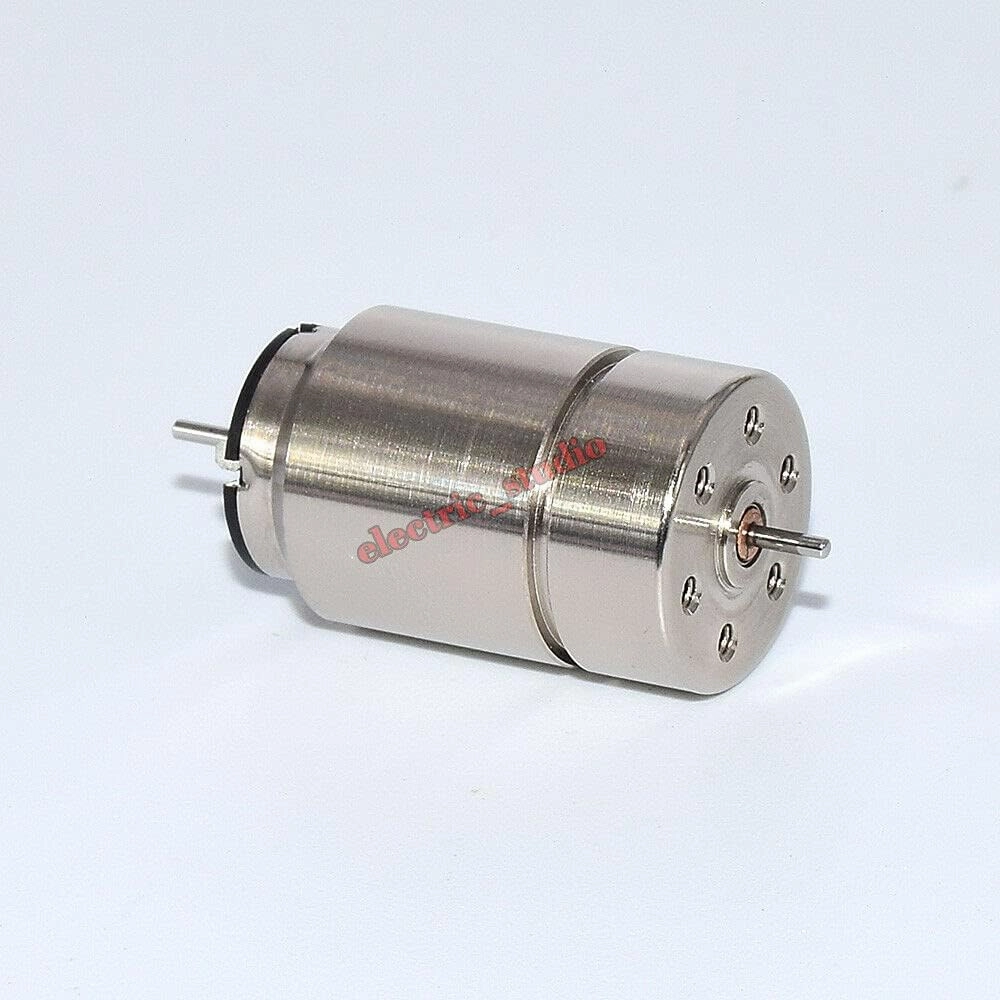

Specifications:
1.Model: 1524
2.Weight: 22g
3.Voltage range: DC 6V-12V
4.Motor size: 15mm*24mm
5.Output shaft diameter: 1.0mm
6.Output shaft length: 4.5mm/6mm
7.Test data:
Voltage:6.0V No-load speed:5400RPM Current:6mA
Voltage:12V No-load speed:10800RPM Current:9mA
Package includes:
Motor x 1pc
Item specifics:
Usage: Toy
Model number: 15mm*25mm coreless motor
Protect feature: Explosion-proof
Commutation: Brush
Construction: Permanent Magnet
Efficiency: IE 1
Type: Micro Motor
Certification: CCC,ce
Origin: Mainland China
Type: Mini Coreless Motor
Model: 15mm*25mm coreless motor
Nominal rated input voltage: DC 6V-12V
