- Medium-duty foot switch with highly durable die-cast housing and powder-painted finish.
- Includes 8-ft cable with leads on end of cable; rated 15 A, 125 / 250 VAC, SPDT (wired normally open).
- Great for home or shop applications for on / off function.
- Momentary action - Press and hold foot pedal to turn on, release to turn off.
- Made in USA. Certified to UL and CSA standards.

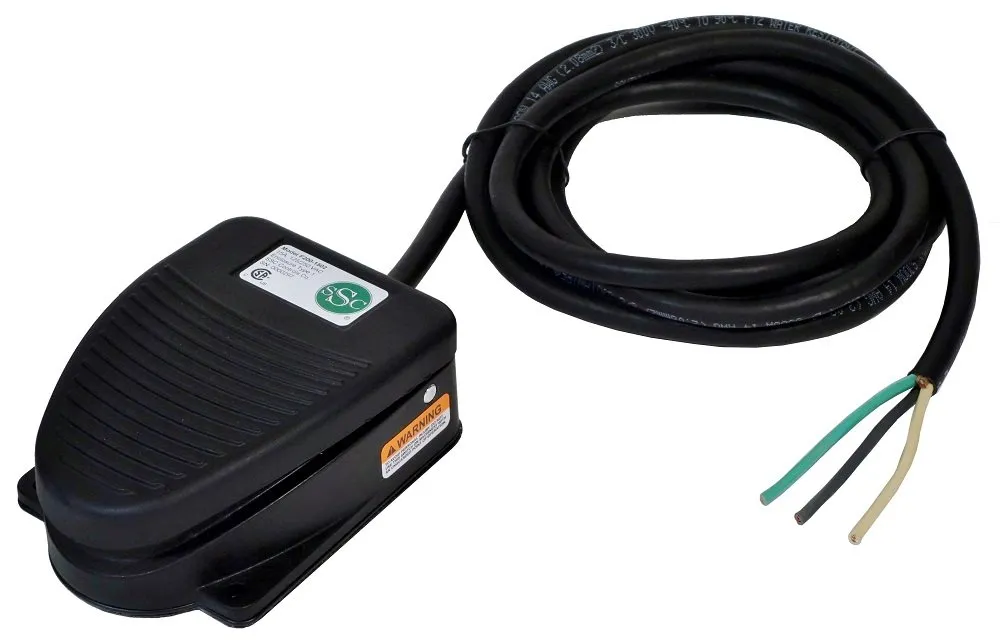

The F200-1502 is a medium-duty foot switch featuring a highly durable die-cast zinc alloy housing, powder-painted finish, and 8-foot cable with leads on the end of the cable (the 3 leads to be connected to your device: one ground, one common, and one wired normally open). You will have to hard-wire this to your device, so consult an electrical or knowledgeable person for proper wiring advice if needed (or see F200-1501 for the 3-pronged piggyback plug version). This is a momentary foot switch, which means that it turns your product on when your foot is on the pedal, and turns it off when you release your foot from the pedal. Features a 15-amp, 125/250 VAC-rated switch. Ideal for power tools, office and communication equipment, musical operation, lighting, and more. Includes a traction pad and two exterior bolt-down holes. Enclosure rating: CSA/NEMA Type 1 and IEC 60529 IP20. For indoor use in dry environments. CSA Certified to US and Canadian standards. Size: 4.8" L x 3.5" W x 1.7" H plus the cable; 3 pounds. One year warranty on parts and labor. Made in the USA by SSC Controls Company.
- Is Discontinued By Manufacturer : No
- Product Dimensions : 4.8 x 3.5 x 1.7 inches; 3.1 Pounds
- Date First Available : November 24, 2015
- Manufacturer : SSC Controls
- Country of Origin : USA
